Axino Hardware & Cloud

Complete freedom to mix and match IoT devices (or objects) with communication technology of your choice in a single application.

alternative

Axino Hardware

Powerful . Versatile . Optimised

VIEW DOCUMENTATION
...

...

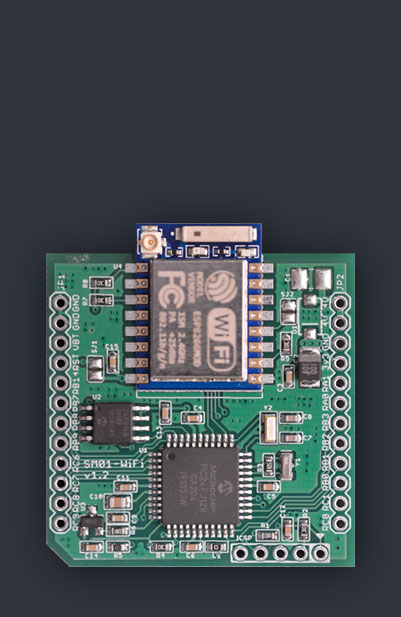

SM01-WiFi

Provides WiFi Connectivity

...

...

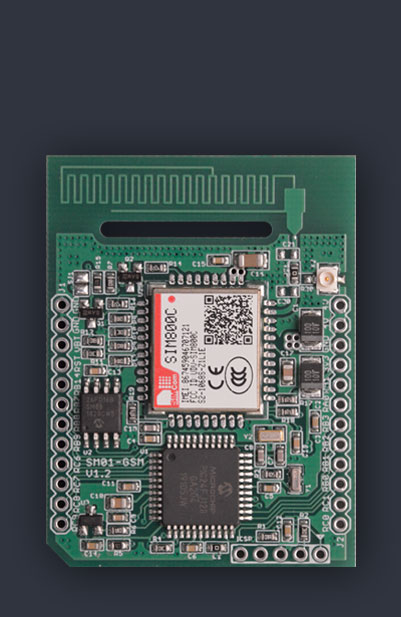

SM01-GSM

Provides GSM Connectivity

...

...

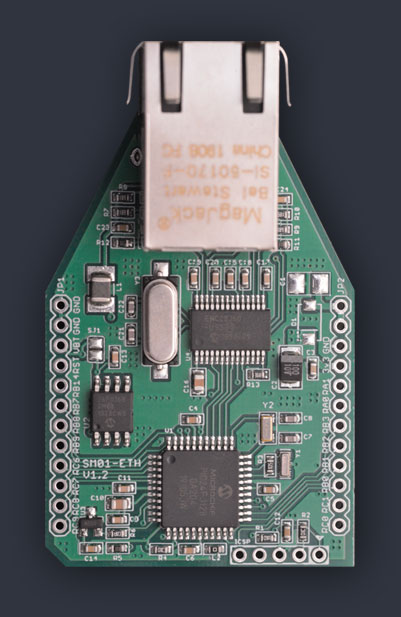

SM01-ETH

Provides Ethernet Connectivity

...

...

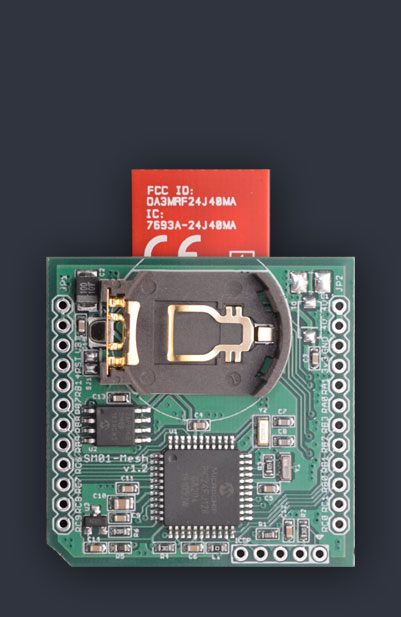

SM01-Mesh

Provides Mesh Connectivity

...

...

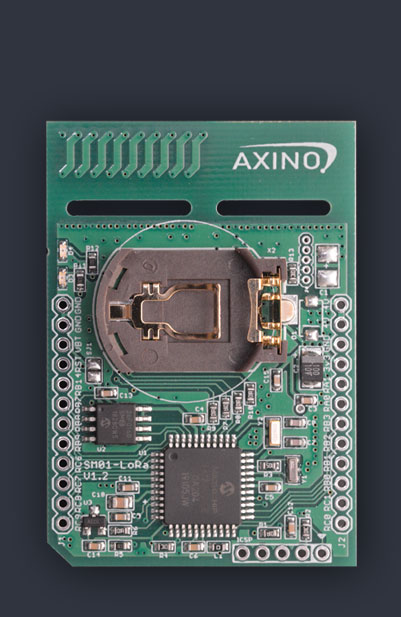

SM01-LoRa

Provides LoRa Connectivity

Features

  •   Microchip 16 bit microcontroller.
  •   128 KB program flash.
  •   8 KB RAM.
  •   Hardware based Cryptographic Engine.
  •   RTC with Vbat for backup.
  •   2 MB on board SPI flash.
  •   On board 32.768Khz secondary clock crystal.
...

(SM01 Module Block Diagram)

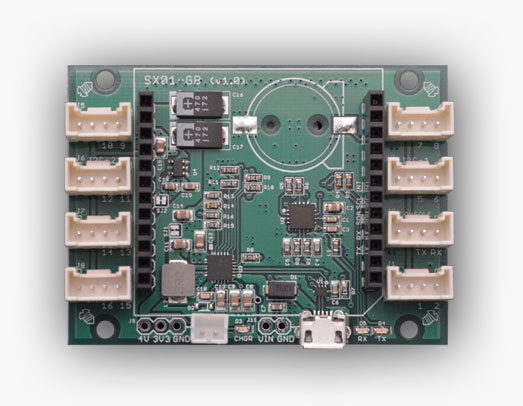

SX01-GB

SM01 Expansion Board

Attach 280+ grove sensors and actuator modules covering a wide range of IoT applications without even soldering a single wire. SX01-GB contains integrated power management circuitry, lithium-ion battery charger and USB to UART converter.


...

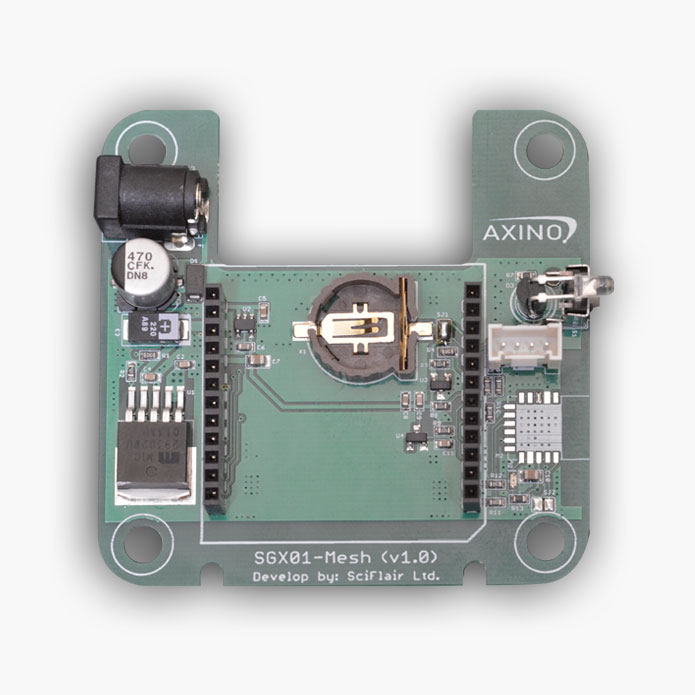

SGX01-Mesh

Mesh Gateway Expansion Board

Plug in any of the SM01-GSM, SM01-WiFI or SM01-ETH module and get cloud connectivity to mesh network.



...

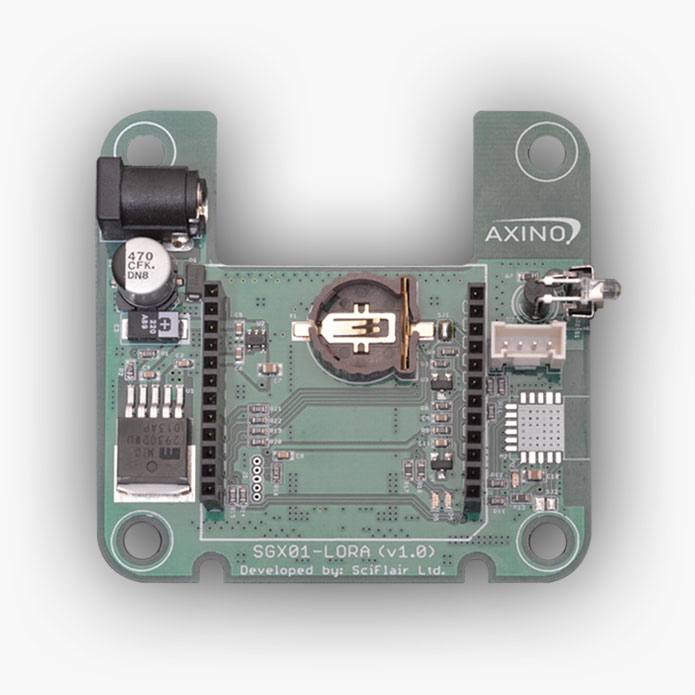

SGX01-LoRa

Lora Gateway Expansion Board

Plug in any of the SM01-GSM, SM01-WiFI or SM01-ETH module and get cloud connectivity to lora network.


...

Compatible with Readily Available Enclosures

...

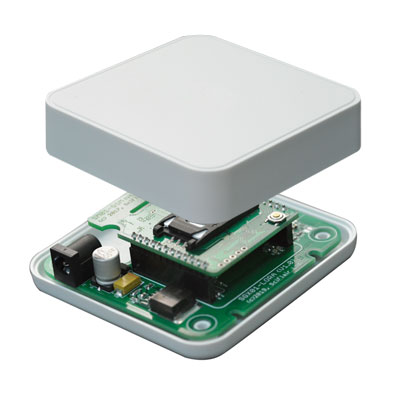

S303010

...

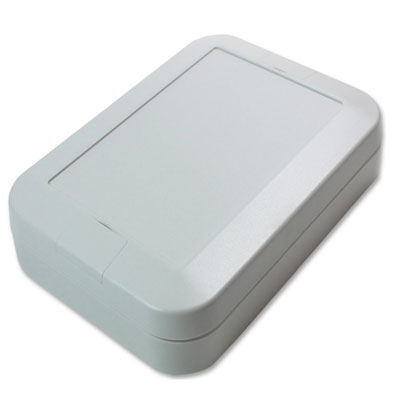

WP9-13-4

...

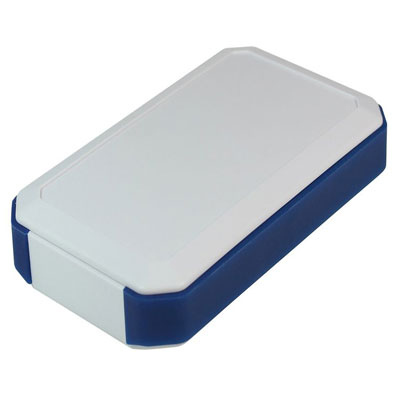

WH125-28-F2

Device Framework

Flexible . Secure . Reliable

Our framework allows common code accross Cellular, WiFi, Ethernet, LoRa or Mesh network to connect sensors. You can switch between communication technolgies without writing any extra code.

alternative
VIEW DOCUMENTATION DOWNLOAD

Easy To Use Hardware Drivers

alternative
alternative
alternative
alternative

Secure Communication with Cloud

Our unified communication interface driver (EZCOM) send and receive AES128 hardware encrypted messages from SM01 communication modules to cloud platform.

alternative
alternative

A World of Helpful Features

  •   Integrated bootloader based on Microchip EZBL bootloader
  •   Dedicated serial interface for Program and trace
  •   Tick module for time measurement
  •   Cloud Synchronized RTC
  •   External flash storage
  •   Device Monitoring (temprature, voltage and uptime etc.)

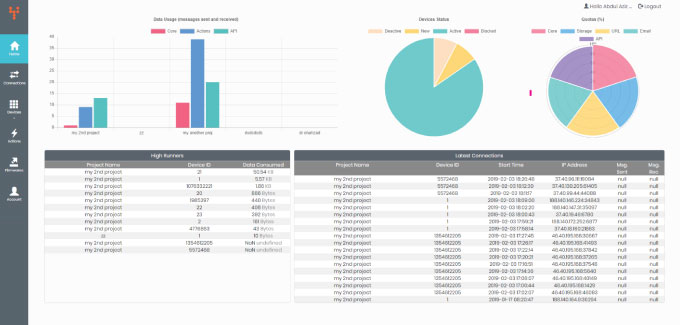

Axino IoT Cloud

Unified . Simple . Secure

Our Axino cloud works uniformly with all SM01 devices. All you need is just one Axino account for all connectivity options.

alternative
alternative

Intuitive Set of Features

  •   Device and gateway management
  •   Provisioning of devices and monitor data usage
  •   Communication logs
  •   Forward data to third party applications using webhooks
  •   REST APIs for device management and communication
GOTO CONSOLE

Thank You


Thank you for showing interest. We are working hard to bring Axino to life. Email notification with discount coupon will be sent to you when the product is available to buy.
